The Five Oceans Pacific 900 Vertical Windlass has a stylish look, 100% stainless-steel design which sits elegantly on the deck. Not to mention, it's fitted with a heavy-duty lever for easy installation. Noteworthy is the importance of the gypsy creating the perfect contact between rope and chain. It includes an impact-resistant motor cover, solenoid and standard switches which fit perfectly on the cockpit or bow of the vessel. This Pacific series windlass is ideal for your average cruiser, the big time fisherman, those made for speed or the calm sailor.
Note: For the vertical windlass series, the motor allows for a 90-degree rotation at 12 o'clock, 3 o'clock, 6 o'clock, & 9 o'clock. Depending on the spacing that permits for such positioning.
Installation Details
Note for decks that are not flat, a suitable mounting pad may be required to take up camber or sheer. Decks made of a thin, foam or balsa laminate construction, will require reinforcement in order to spread the loads that will be applied to the deck while the windlass is in use. The standard (1/4") threaded mounting studs supplied suit deck and packing thickness of up to 35 mm (1 1/4"). These are adequate for most installations.
FEATURES:
Windlass
SPECIFICATIONS:
Note: For the vertical windlass series, the motor allows for a 90-degree rotation at 12 o'clock, 3 o'clock, 6 o'clock, & 9 o'clock. Depending on the spacing that permits for such positioning.
Installation Details
Note for decks that are not flat, a suitable mounting pad may be required to take up camber or sheer. Decks made of a thin, foam or balsa laminate construction, will require reinforcement in order to spread the loads that will be applied to the deck while the windlass is in use. The standard (1/4") threaded mounting studs supplied suit deck and packing thickness of up to 35 mm (1 1/4"). These are adequate for most installations.
FEATURES:
- DIY - ready mounting template for convenient on-deck installation
- Powerful motor for fast and secure anchor retrieval at the push of a button
- Includes a dual set of switches for either the bow or the console.
- Suitable for boats of 25 to 35 feet in length
- Backed by a 1-year warranty

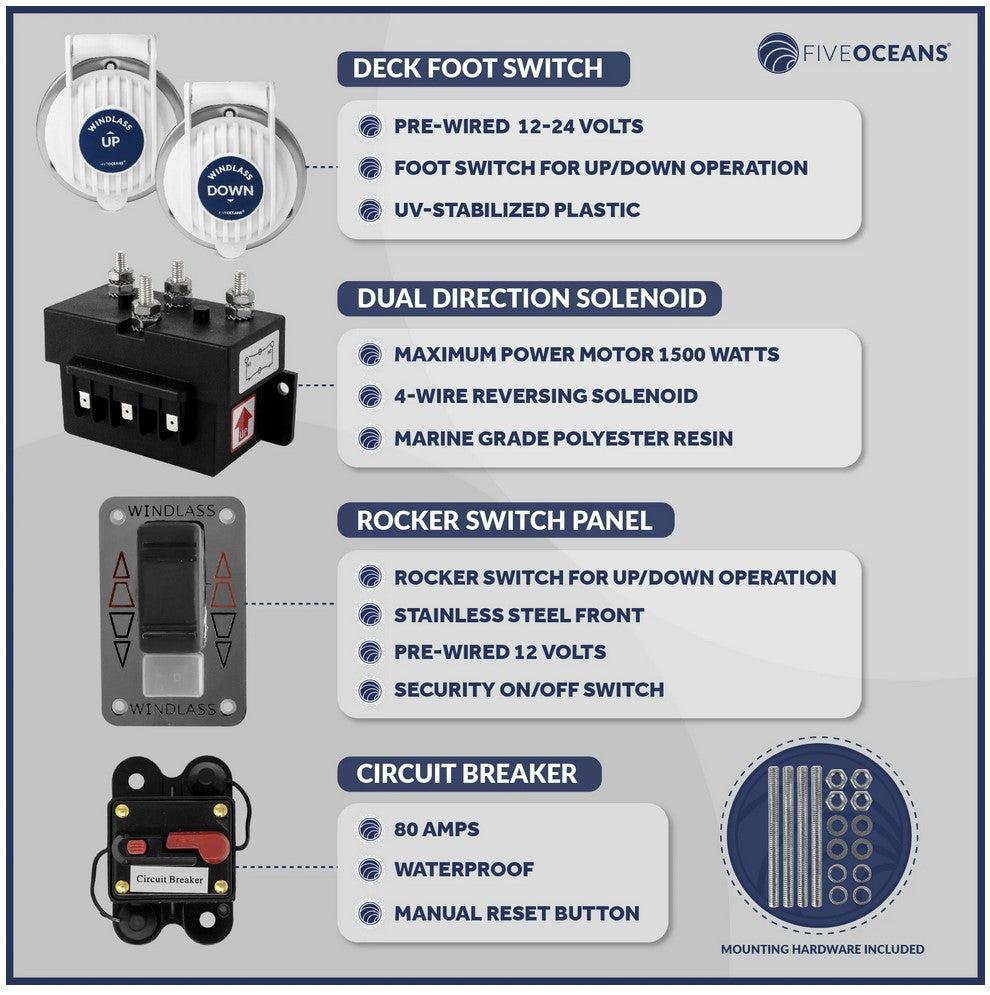

Windlass
- Dual-Directional Solenoid
- 80 Amp Circuit Breaker
- Up/Down Rocket Switch
- Up/Down Foot Switch
- Installation Winch
- Manual w/Mounting Template
SPECIFICATIONS:
- Rope Size: ONLY use 1/2" (12 mm) 3 strand nylon
- Model: Pacific 900
- Motor: 900W
- Maximum Pull: 1450 lbs (657 kg)
- Voltage: 12 Volts
- Current draw(A): 55 Amps - Max current draw(A): 75Amps
- Circuit Breaker: 80 Amps
- Boat Length: To 25' / 35'
- Rode Type: Rope/chain
- Chain Size: 1/4" HT G4
- Retrieval Speed: 70 Feet per minute
- Drop Speed: 131 Feet per minute
- Max. working load (kgs/Ib): 220/484
- Max. power pull (kgs/Ib): 660/1452
- Material: 316 Stainless Steel
- Type: Vertical
PRODUCT NUMBER: CAE-003287-01
