Bennett Complete Kit BOLT Electric Trim Tab with 2020 Integrated Helm Control, 12x9 inches

These electric trim tab systems are suitable for boats from 18-25 ft. It comes with an attractive and user-friendly 2020 Integrated Helm Control Switch, stand-alone helm control without the need for an external control unit. Reduce bow rise and plane faster. The Integrated Helm control has Convenient "All Up" and "All Down" buttons, Trim tab position LEDs always show you where your tabs are Auto tab retraction (tabs retract up when the ignition is powered off). The NEW 2020 Integrated Control is an Easy-to-install single lock nut design and Compatible with other trim tab system brands.

Kit Includes:

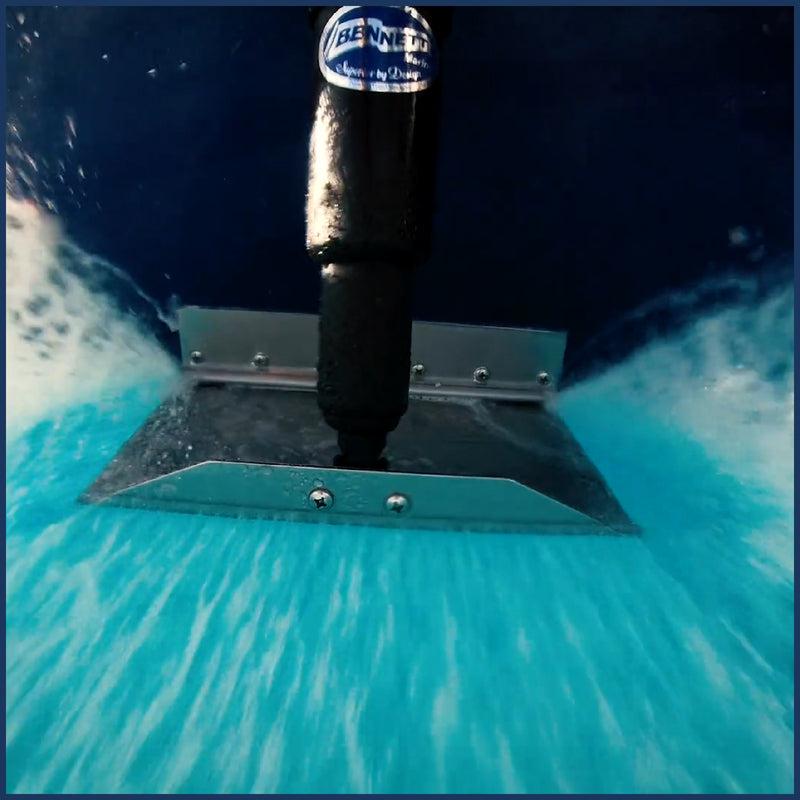

(2) Stainless steel trim planes (tabs) and mounting plates (12 x 9 inches) BOLT129 with the two(2) 12-volt actuators and 6ft. wire harnesses plus waterproof connectors (BEA3000)
(2) 20ft. harnesses with waterproof connectors (BAW2020)
(1) Integrated Helm Control (OBI9000E)

SPECIFICATIONS:

• NEW 2020 Integrated Helm Control (OBI9000E)
• Stand-alone helm control without the need for an external control unit.
• The functionality and "brains" of the control unit are engineered directly into a single, space-saving, and simple-to-install keypad.
• Reduce bow rise, plane faster, and correct listing
• Convenient "All Up" and "All Down" buttons
• Trim tab position LEDs always show you where your tabs are Auto tab retraction (tabs retract up when the ignition is powered off)
• Easy-to-install single lock nut design
• Compatibility: Boats 18-25 ft Long
• Dimensions: 12 x 9 inches
• Voltage: 12 Volts
• Trim Tab Actuator: Electric System
• Actuator Chord: 6FT
• Working forces: Actuation force: 750Lb. | Return Force: 750Lb.
• (This is max capacity; typically operates at 250 lbs)
• Type: Trim Tab Kits (Edge Mount)
• Style: Self-Levelling
• Mounting Hardware: Mounting Hardware (Included)
• Warranty Details: Limited Lifetime Warranty provided by the manufacturer.

DOWNLOAD PRODUCT MANUALS

PRODUCT NUMBER: CAE-010046-01
