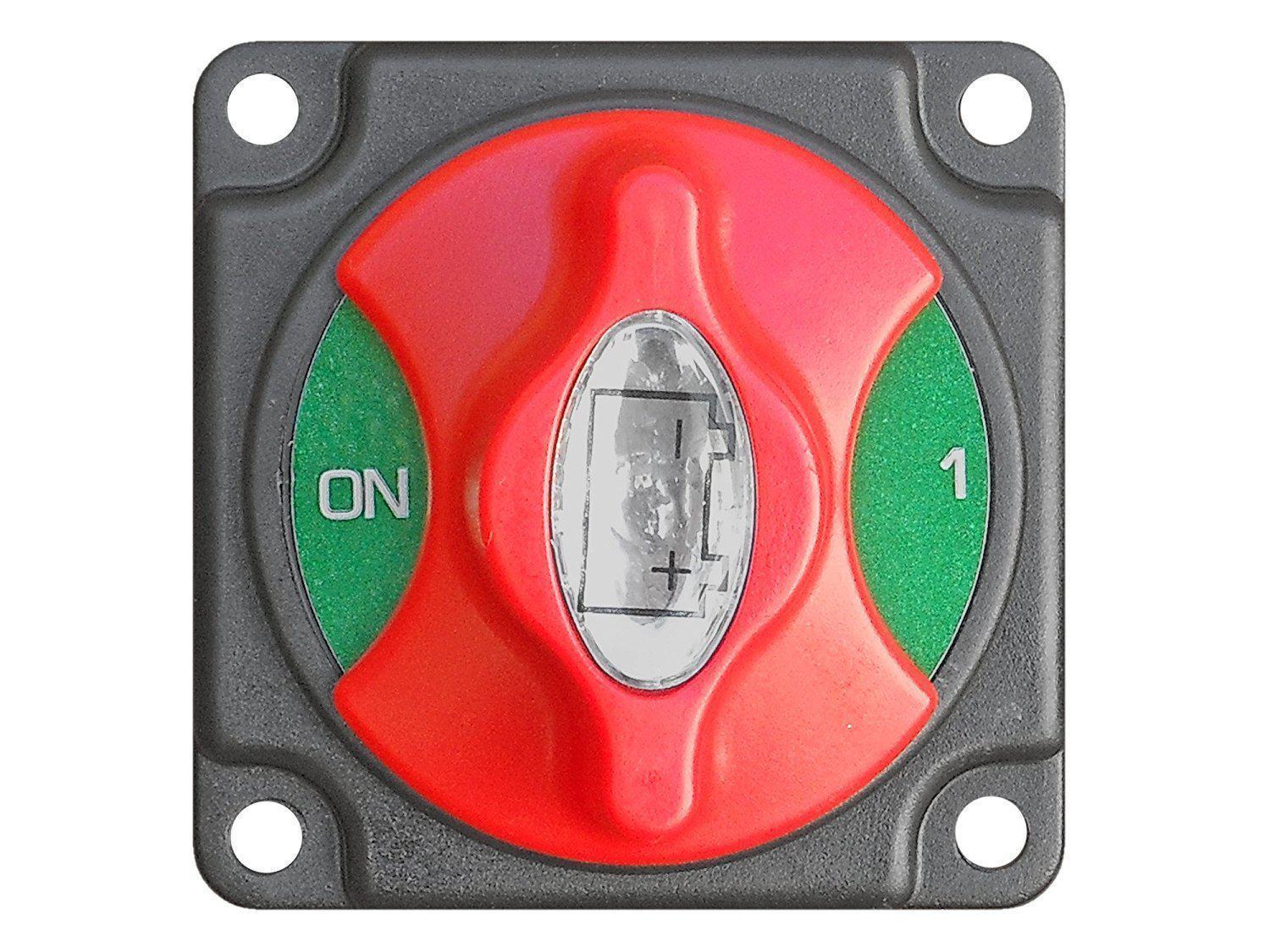

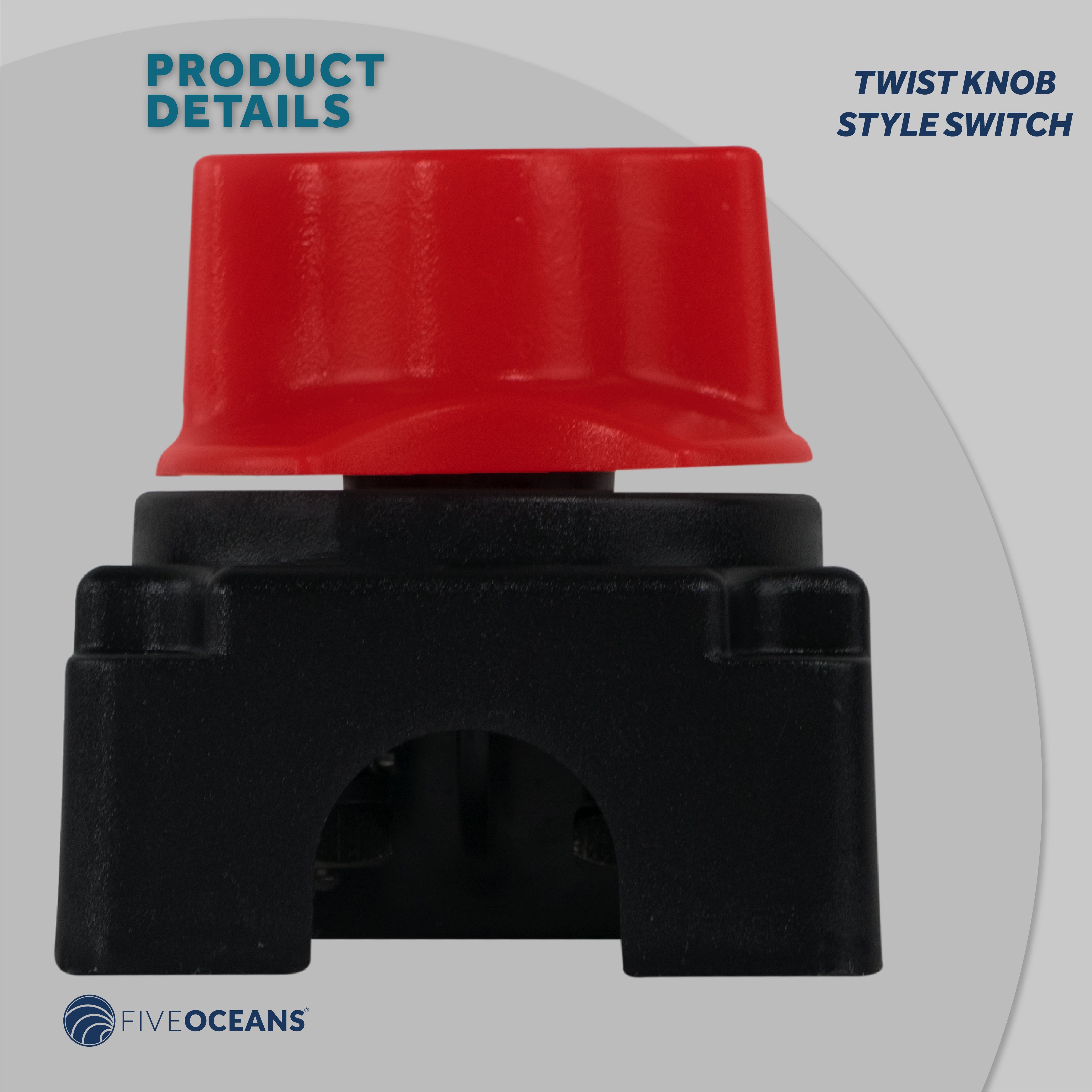

Single Circuit On-Off Battery Disconnect Switch with Knob, 250 Amp for Boat & RV

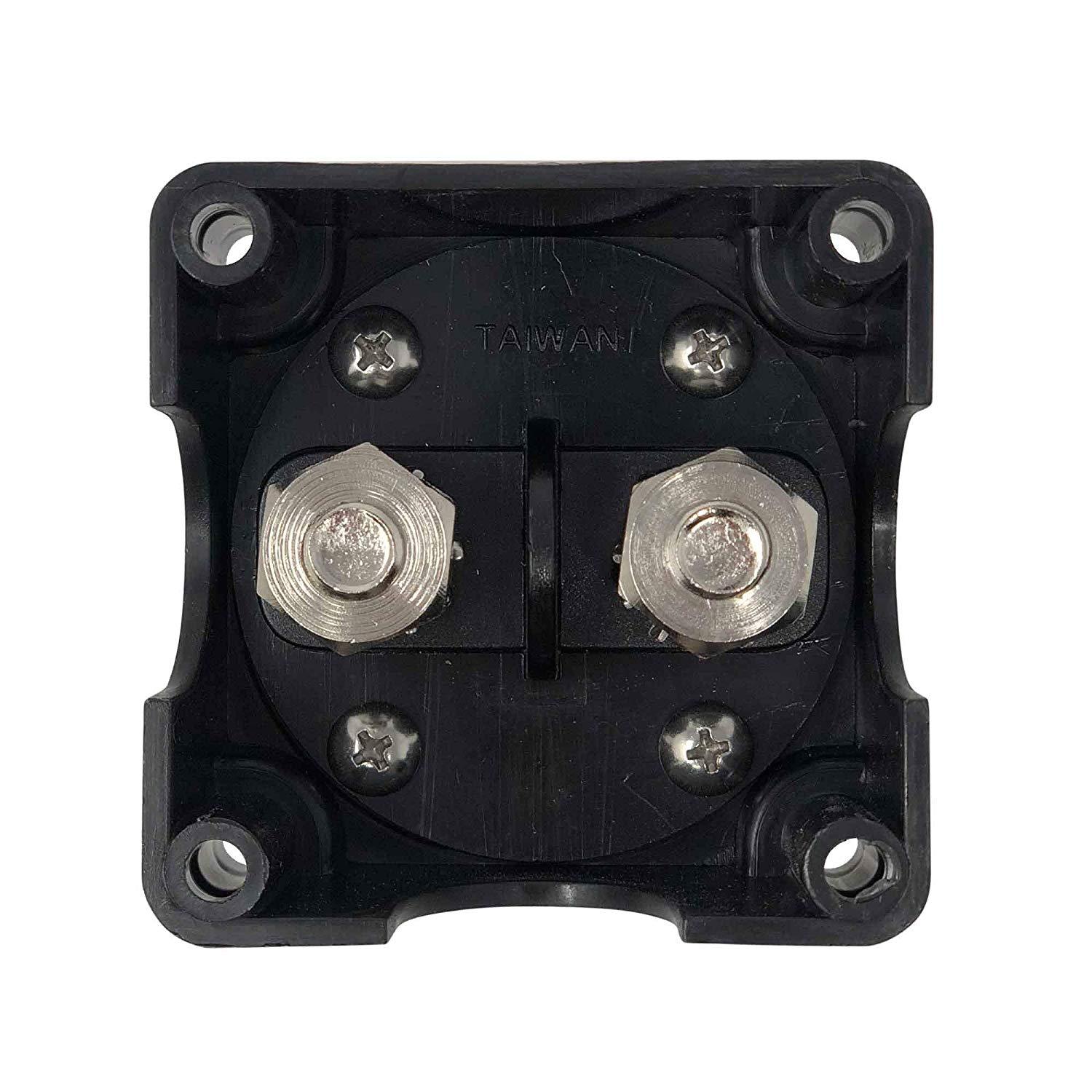

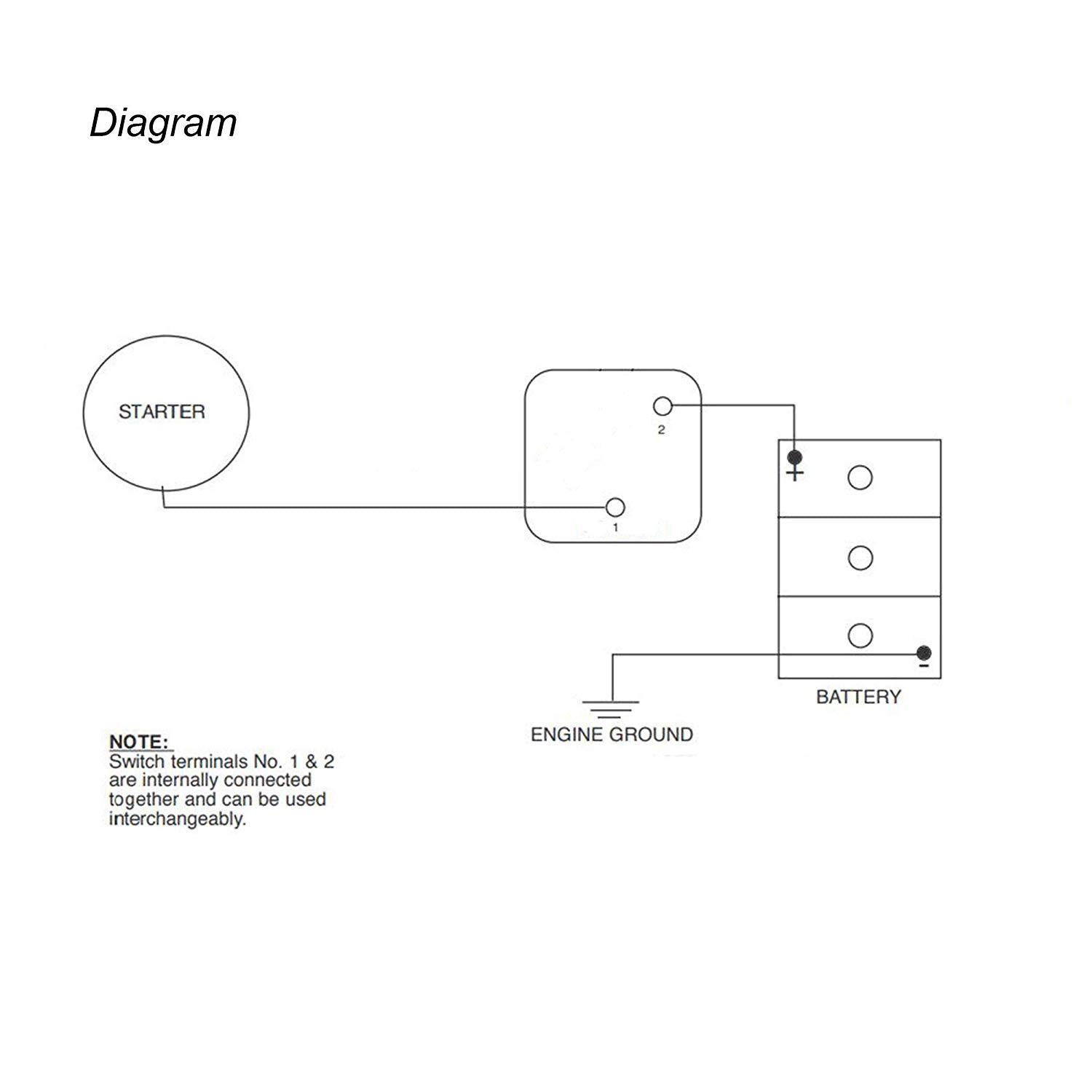

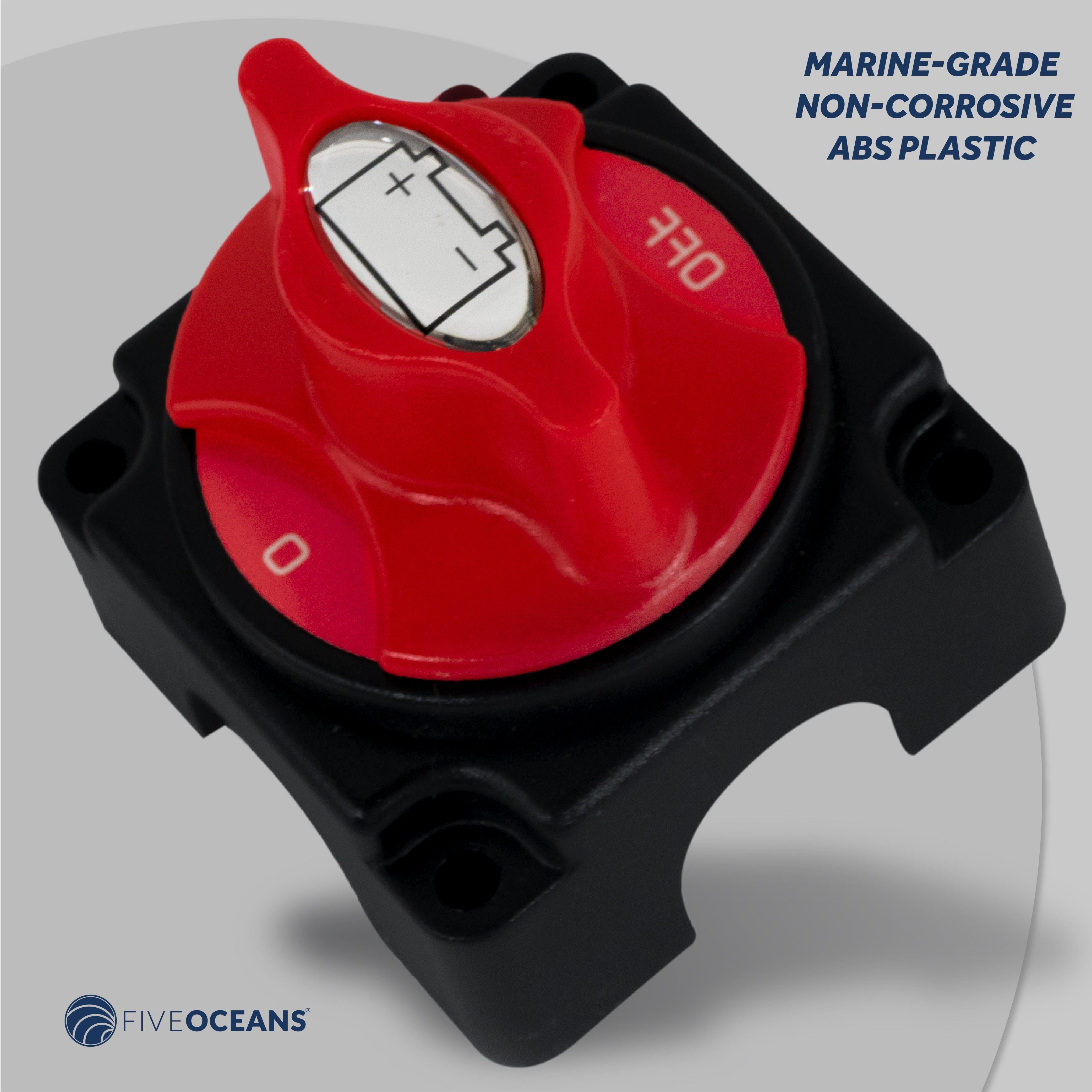

Single On-Off Circuit Battery Selector Switch. Switches a Single Battery to a single load group. Constructed of Non-Corrosive grade metals. Silver Plated brass stud bolts for maximum conductivity.

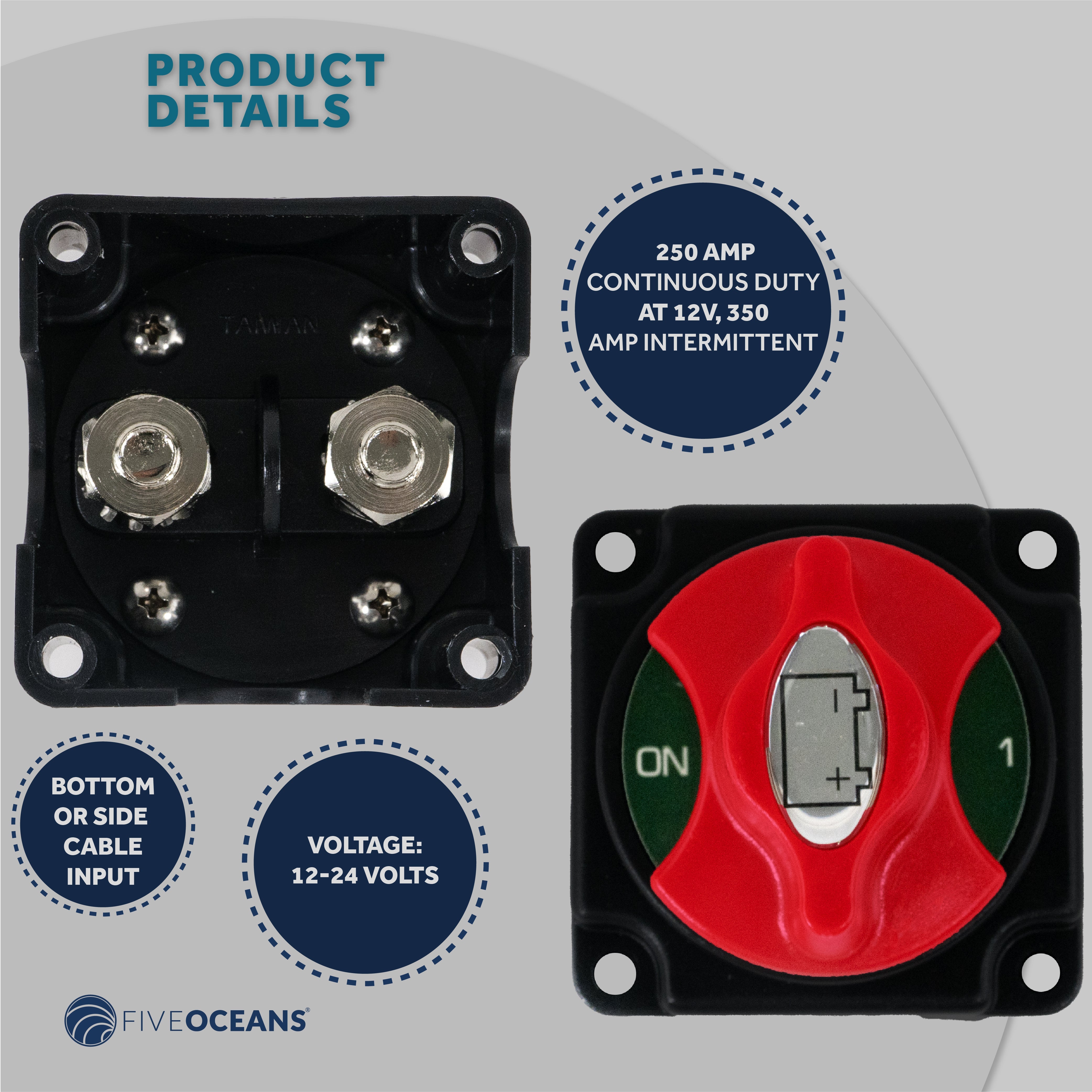

Continuous Rating: 250 Amps, Intermittent Rating: 350 AMPs, Voltage:12-24V DC. Vapor Tight and Ignition protected. Safe for installation aboard gasoline powered boats.

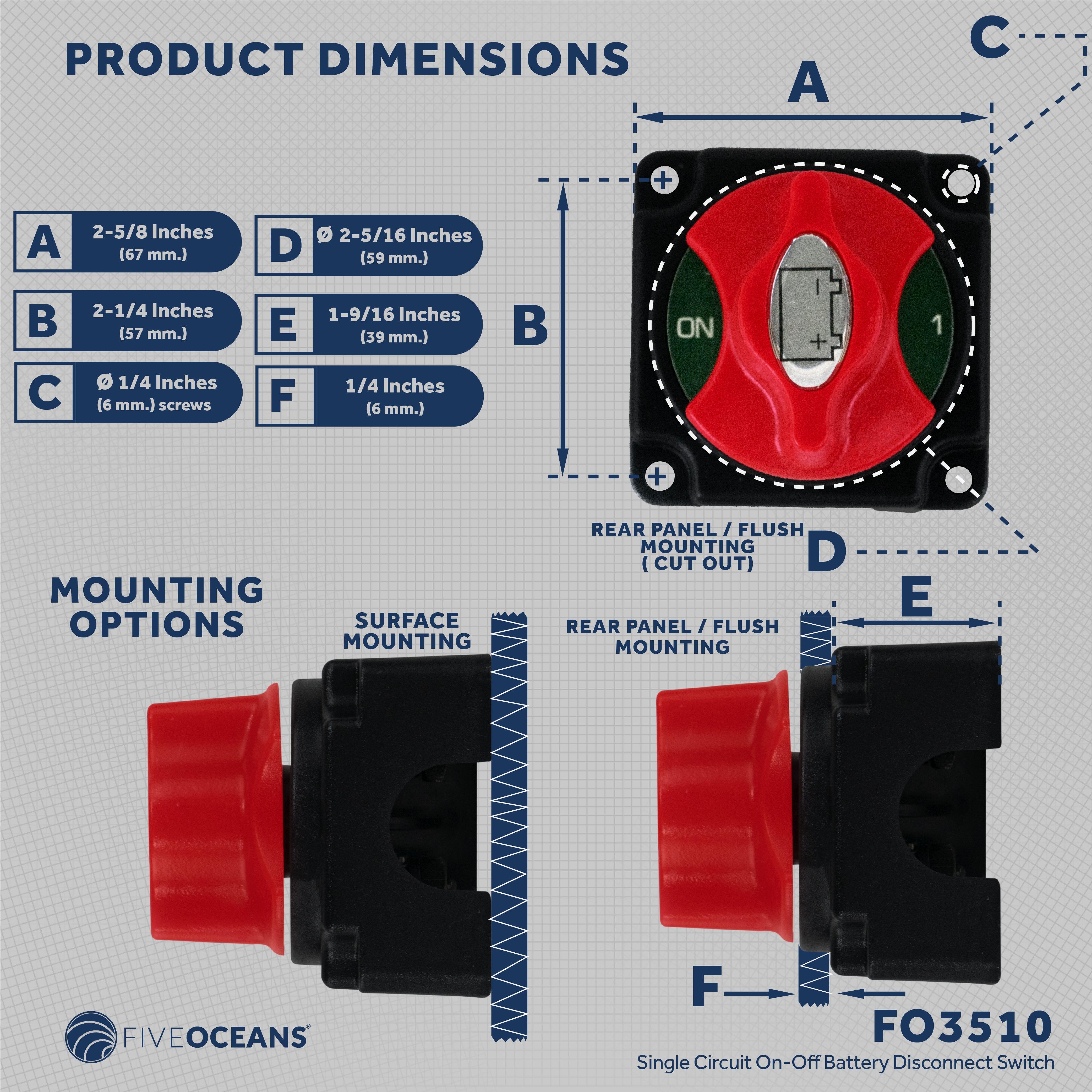

Two Mounting Options: Surface Mounting and Rear Panel/Flush Mounting. Base Dimension: 2 5/8 x 2 5/8 Inches (67 x 67 mm).

Rear Panel/Flush Mounting Cutout: 2 5/16 Inches (59mm). Distance Between Holes: 2 1/4 Inches (57mm). Hole Diameter: 1/4 Inches (6mm) Screw.

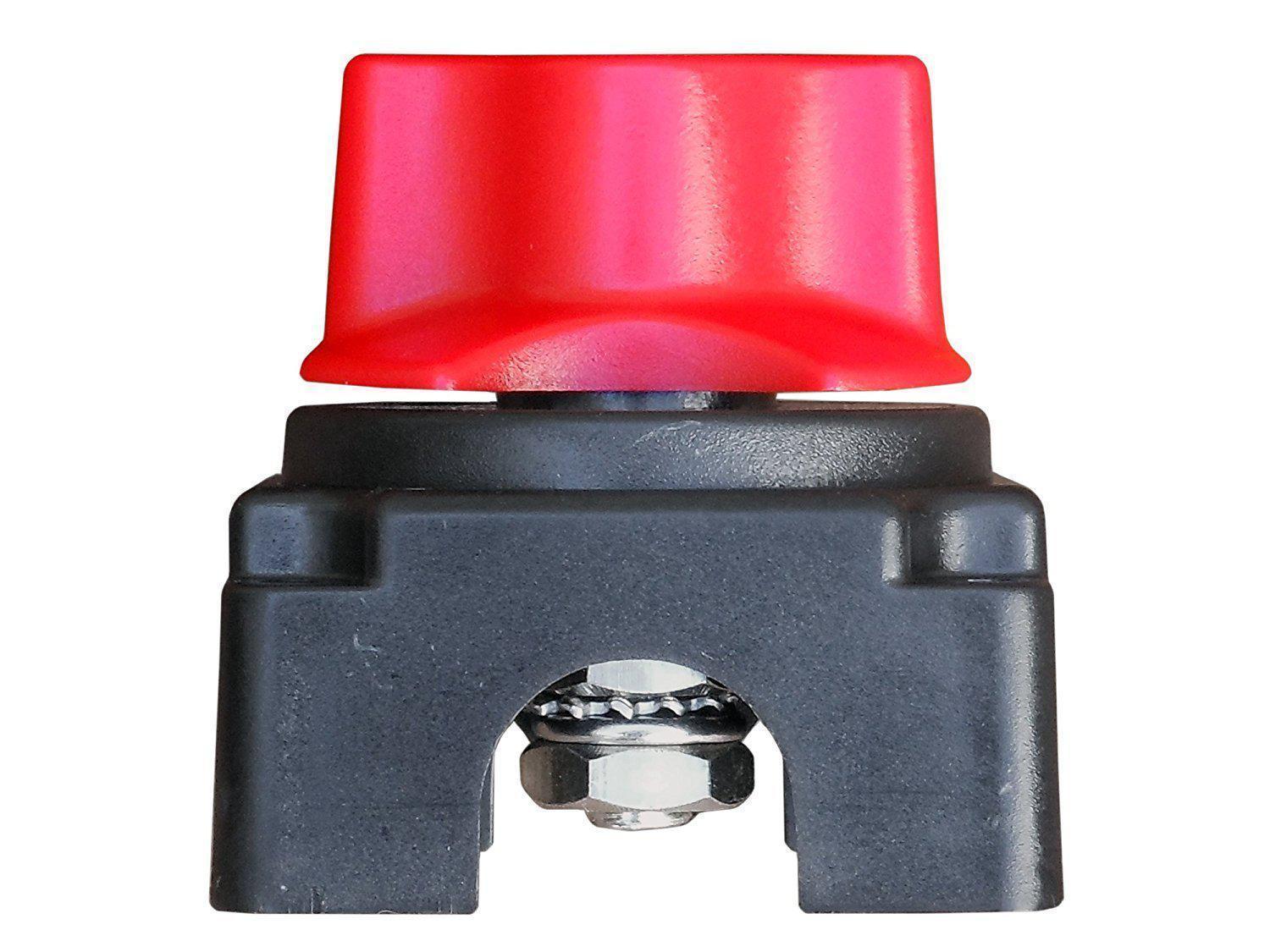

Case design offers multiple mounting options.
