Complete Kit Electric Bilge Pump 2000 GPH w/ Automatic Float Switch (20 Amps, 12V-32V) & Panel Switch (3-Way 12V with LED lights)

Five Oceans SKU: CAE-010019-01

$88.25 CAD $141.98 CAD Ahorra $53.73 CAD

* Los gastos de envío se calculan en la pantalla de pagos

Único 7 Quedan!

This Five Oceans' Electric bilge Pump Complete Kit comes with a float switch and a Panel Switch.

KIT INCLUDES:
  • One (1)Bilge Pump 12V 2000 GPH (BC-3616)
  • One (1) Automatic Float Switch 20 Amp 12V -32V (BC-3610)
  • One (1) Bilge Pump Switch Panel - 3 Way 12V with LED indicators (BC-3851)

SPECIFICATIONS:

FLOAT SWITCH:
  • Type: Float Switch
  • Voltage: 12 - 24 Volts
  • Max Amps 12 Volts: 20 Amps
  • Max Amps 24 Volts: 10 Amps
  • Wire Length: 3 Feet
  • Wire Gauge Size: 18 AWG
  • Dimensions: 5 1/8" (130 mm) x 1 23/32"" (44 mm) x 2 1/8" (54 mm)
  • Mercury Free: Yes

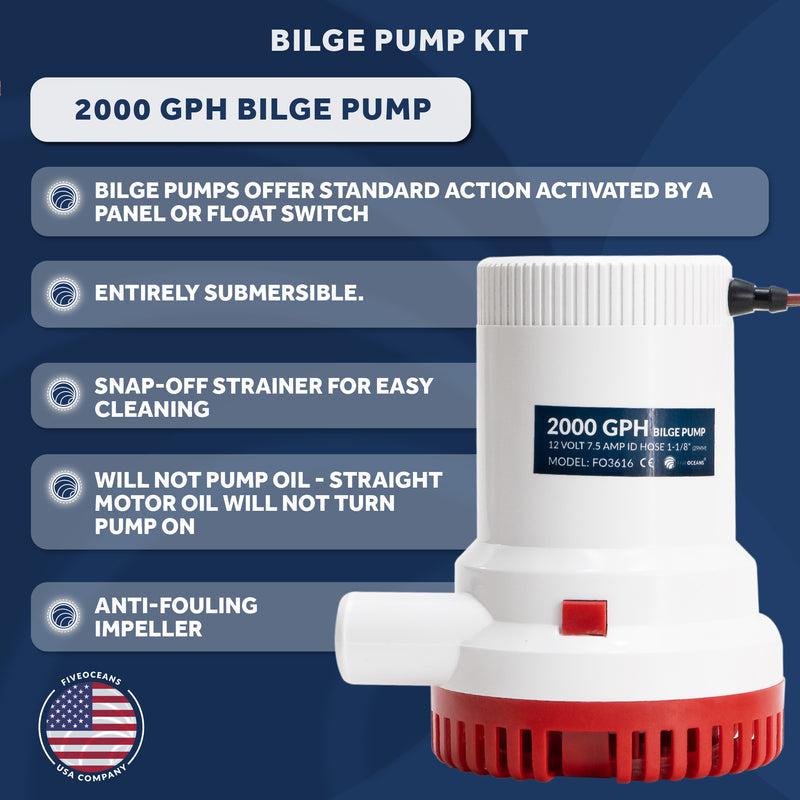

BILGE PUMP:
  • Flow Rate: 2000 GPH
  • Voltage: 12 Volts
  • Max Draw: 8.5 A
  • Fuse Amps: 14 A
  • Head: 20' (6M)
  • Wire Lead: 3' (1M)
  • Outlet Diameter: 1 1/8"
  • Type: Bilge Pump
  • ABS exclusive moisture tight seal
  • 1 1/8" nylon hose barb allows for multiple connection options
  • Easy clean snap-lock strainer base
  • Ignition Protection
  • 14 AWG, 1M Long Leads
  • Compact, efficient, long life motors
  • Meets RoHS, SGS, and ISO standards
  • Traditional operation by switch or float switch
  • Entirely Submersible
  • Run dry under for normal workloads
  • Quiet operation
  • 110 Degree F (43 Degree C) temperature limits
  • Stainless Steel Shaft
SWITCH PANEL:
  • Type: Auto/ Off/ Manual
  • Capacity: 20A @ 12V, 10A @24V, 6.5A @ 32V
  • Features: Breaker fuse (button)

PRODUCT NUMBER: CAE-010019-01
